EC Fiber Optic Pigtail Single Mode 2.5M LSZH Jacket
EC SM Pigtail Description
Fiber optic pigtail is the cable with only one end terminated with fiber optic EC connector, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
EC SM Pigtail Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
EC SM Pigtail Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
EC SM Pigtail Specifications
| End face type |
UPC and APC |
| Fiber type |
SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter |
0.9 mm |
| Insertion loss |
≤ 0.3 dB |
| Return loss |
UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability |
≤ 0.1 |
| Durability |
≤ 0.2dB |
| Interchangeability |
≤ 0.2dB |
| Tensile strength |
0.9mm cable>5N；2.0/3.0mm cable>70N |
| Operating Temperature |
-20℃~70℃ |
| Storage Temperature |
-40℃~80℃ |
| Outer Sheath Material |
PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) |
10D/20D |
| Length |
Customized |

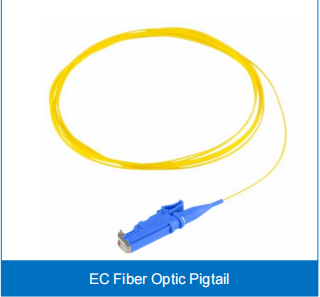

EC SM Pigtail Picture
Why choose TAKFLY
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
